APPLICATION
• Actuators • Emergency Lighting • Telematics • Automotive • Security Equipment • Backup System • Smoke Detectors • Advanced MeteringProduct Introduction
Electric Double Layer Capacitor,Super Capacitor 2.5V 50F product informations.| Item | Work Voltage(V) | Capacitance(F) | Size (ΦD×Hmm) | Pitch/ Lead Space | |

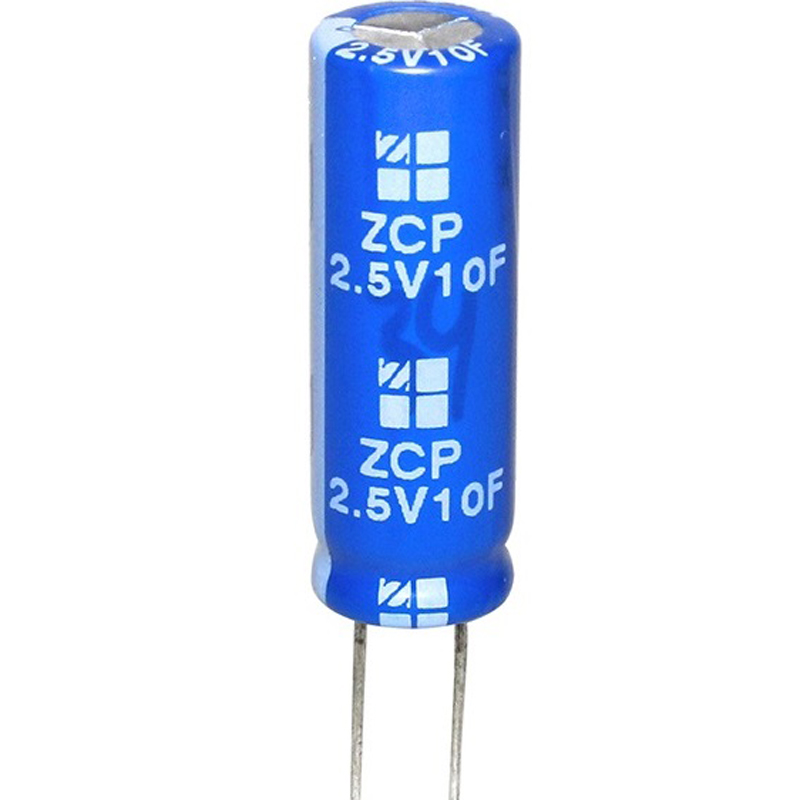

| Radial Super Capacitor | 2.5V | 10F | 12.5×26mm | 5.0mm |
Product Parameter
Type: GoldCapacitors Sleeve Color: Blue color sleeve Capacitance: 10F Rated Voltages: 2.5V Surge Voltages: 2.65V Operating Temperature Range: -40℃～+70℃ Capacitance Tolerance: ±20% Size(D*L/Mm): 12.5*26mm Lead Space(Mm): 5.0mm AC Impedance (1KHZ): 80mΩ DC impedance: 160mΩ Maximum Operating Current(△T=15℃): 1.30 A Maximum Peak Current: 4.81A Maximum Leakage Current(72hrs): 0.030 mA Power Density: 1420(W/Kg) Maximum Storage Energy: 0.0087 W.h Energy Density: 2.4(Wh./kg) Weight(G): 0.005 Kg
Production Details
| Part Number | Rated Voltage(V) | Rated Cap. (F) | Size(mm) | ESR AC (1kHz/mΩ) | ESR DC (1kHz/mΩ) | Leakage Current(24hrs)( μA) | ||
| D | H | Pitch | ||||||
| HSE2R5J354YS0512 | 2.5 | 0.35 | 5 | 12 | 2 | 600 | 1200 | 2.8 |
| HSE2R5J504YS6C13 | 2.5 | 0.5 | 6.3 | 13 | 2.5 | 600 | 1200 | 4 |
| HSE2R5J704YS0813 | 2.5 | 0.7 | 8 | 13 | 3.5 | 600 | 1200 | 5.6 |
| HSE2R5J105YS0813 | 2.5 | 1 | 8 | 13 | 3.5 | 600 | 1200 | 8 |
| HSE2R5J205YS1020 | 2.5 | 2 | 10 | 20 | 5 | 250 | 500 | 16 |
| HSE2R5J335YS0824 | 2.5 | 3.3 | 8 | 24 | 3.5 | 250 | 500 | 26.4 |
| HSE2R5J335YS0820 | 2.5 | 3.3 | 8 | 20 | 3.5 | 250 | 500 | 26.4 |
| HSE2R5J335YS1020 | 2.5 | 3.3 | 10 | 20 | 5 | 200 | 400 | 26.4 |
| HSE2R5J475YS1B21 | 2.5 | 4.7 | 12.5 | 21 | 5 | 120 | 240 | 37.6 |
| HSE2R5J805YS1B21 | 2.5 | 8 | 12.5 | 21 | 5 | 100 | 200 | 64 |
| HSE2R5J106YS1B26 | 2.5 | 10 | 12.5 | 26 | 5 | 80 | 160 | 80 |
| HSE2R5J106YS1B34 | 2.5 | 10 | 12.5 | 34 | 5 | 60 | 120 | 80 |
| HSE2R5J126YS1B26 | 2.5 | 12 | 12.5 | 26 | 5 | 60 | 120 | 96 |
| HSE2R5J156YS1B26 | 2.5 | 15 | 16 | 26 | 7.5 | 50 | 100 | 120 |
| HSE2R5J206YS1B34 | 2.5 | 20 | 16 | 34 | 7.5 | 50 | 100 | 160 |
| HSE2R5J256YS1B34 | 2.5 | 25 | 16 | 34 | 7.5 | 50 | 100 | 200 |
